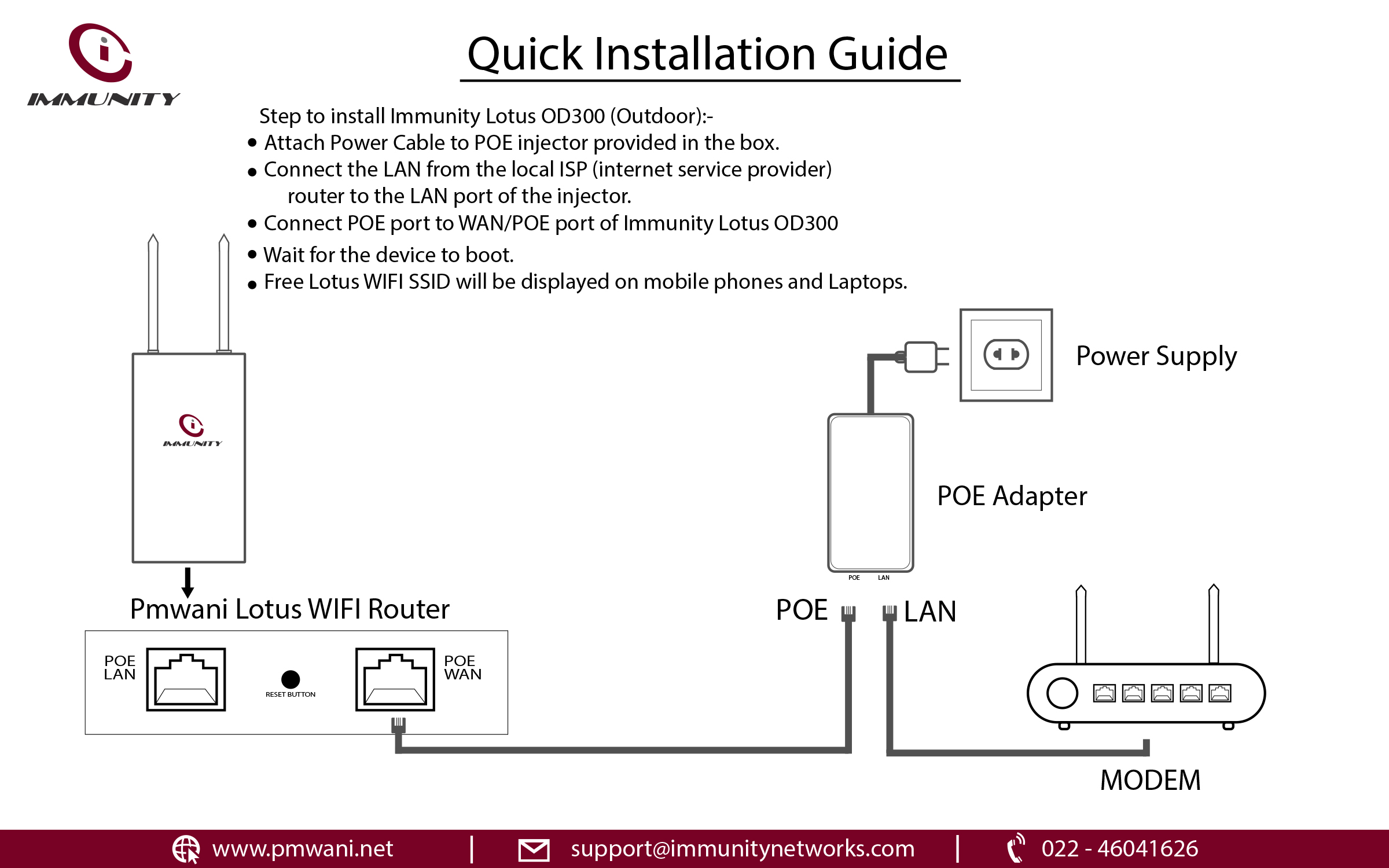

Quick Installation Guide for Immunity Lotus OD300 (Outdoor)

Step to install Immunity Lotus OD300 (Outdoor):-

1> Attach Power Cable to POE injector provided in the box.

2> Connect the LAN from the local ISP (internet service provider) router to the LAN port of the adapter.

3> Connect POE port to WAN/POE port of Immunity Lotus OD300.

4> Wait for the device to boot.

5> Free Lotus WIFI SSID will be displayed on mobile phones and Laptops
